Solar Lighting System w/Radio

12VDC Solar Lighting System with FM radio & MP3 Player The 12V Solar Light System is a portable off-grid system that lets you use solar energy in an efficient and inexpensive way. It comes with fan, light and TV that run on DC12V, so that no energy is wasted in DC to AC conversion. When...

InquiryChat Now

  • Product Details

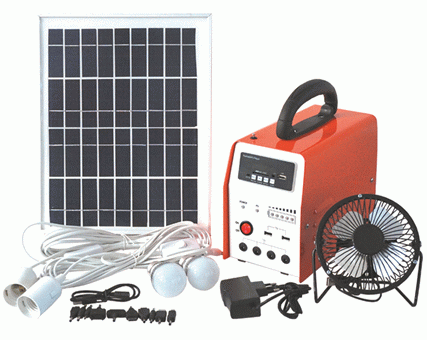

12VDC Solar Lighting System with FM radio & MP3 Player


The 12V Solar Light System is a portable off-grid system that lets you use solar energy in an efficient and inexpensive way. It comes with fan, light and TV that run on DC12V, so that no energy is wasted in DC to AC conversion. When solar panel generates DC electricity, it goes through the Solar Home Lighting System, which has an in-built solar charge controller, to power DC electrical equipment such as lights, fan and TV. It also has in-built battery to store solar energy for future use.



Product Features:


●reducing indoor air pollution as they replace kerosene lamps,

●providing lighting for home study.

●giving the possibility of working at night.

●facilitating the access to information and communication (radio, TV, mobile phone charging).


Technical data:


Model

ISS10-7Q-R

ISS20-12Q-R

System Specification:

Rated Output Voltage

DC 12V

DC 12V

Solar Panel

DC 18V 10W

DC 18V 20W (2*10W)

Solar Charging Time

5.5 hours (efficiency sunlight)

5 hours (efficiency sunlight)

Battery Capacity

12V 7Ah (AGM type)

12V 12Ah (AGM type)

DC Output

4 x DC12V(7A) & 2 x 5V USB(1.5A)

FM Radio with MP3 Player

Yes

Overload Protection

Yes

Under-voltage Protection

      Yes

Overcharge Protection

Yes

Short-circuit Protection

Yes

Reverse polarity Protection

Yes

Accessories(Optional)

3W LED bulb

5/10m light cables w/light holder

USB charger 5V 500mA (10 adapters)

AC/DC 16V charge adapter

Mechanical Data:

System Box(mm)

L240*W130*H215mm

L240*W130*H215mm

System Box(kg)

4.3

5.6

Appearance Color (Standard)

White + Green

White + Green

Solar Panel (mm)

L355*W285*H17

L355*W285*H17*2

Solar Panel (kg)

1.3

2.7

Battery (mm)

L150*W65*H95

L150*W98*H98

Battery (kg)

2.0

3.3

Warranty:

1 year

1 year

factory _副本2.png

factory _副本3.png

factory _副本1.png


Should you're in need of quality home solar generator, welcome to buy the discount home solar generator with reasonable price from our factory. As a professional manufacturer and supplier, we are equipped with advanced technology to better serve you.
