Mini Solar Home Light System--- Easy to charge by Solar

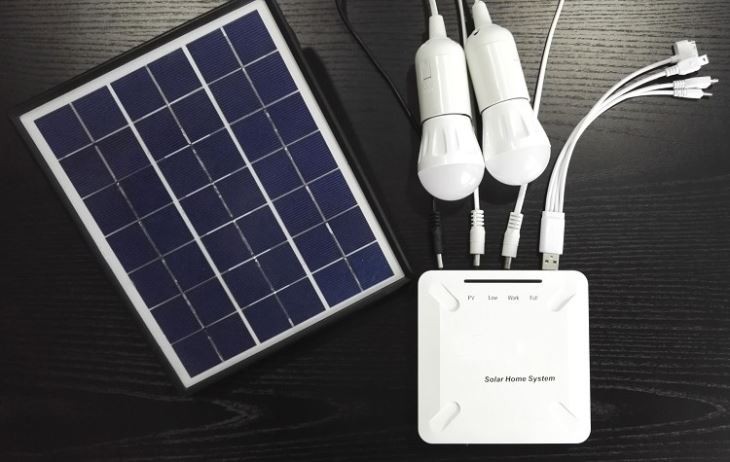

It is a portable solar kit which includes solar panel, battery, controller and bulbs. Use it any where Home, Outdoor, Camping, Shops, Emergency. Never be afraid of Power Cuts. |
| |
| Features: * Mini size, Light weight,Easy to carry. * Built-in Charge Control,Perfect protection. * Lithium Battery,Long service life. * 5V USB for charging mobile phones. * 3 * 6V DC Outputs for illumination. * 3 bright LED bulbs with 5m cables * Mobile Charging USB connections |
|
Technical data:
Model | 3 different models to choose | ||
ISS3-2.5Q | ISS6-2.5Q | ISS6-4.5Q | |
System Specification: | |||
Rated Output Power | 3W | 6W | 6W |
Solar Panel | 9V 3W(Poly) | 9V 6W(Poly) | 9V 6W(Poly) |
Solar Charging Time | 5H | 2.5H | 4H |
Solar Battery | 7.4V 2.5Ah | 7.4V 2.5Ah | 7.4V 4.5Ah |
Lithium battery | |||
Solar Charge Controller | 6V 2A | ||
AC Output | No | ||

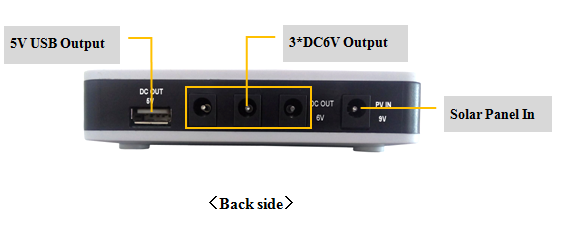

DC Output | 3*6V & 1* 5V(1000mA) USB | ||
DC Output Current | 6V DC current ≤ 1.5A/PC, 5V USB current ≤ 0.5A | ||
Over-load Protection | √ | ||
Over-charge Protection | √ | ||
Over-discharge Protection | √ | ||
Short-circuit Protection | √ | ||
Low-voltage Protection | √ | ||
Reverse PV & Battery Protection | √ | ||
Other Accessories (Optional) | 6V 2W or 3W LED light | ||
3m, 5m or 10m light cable | |||
4 in 1 USB cables for charging mobile phones | |||
AC-DC 9V charge adapter | |||
Certificate | CE & RoHS | ||
Mechanical Data: | |||
Size of the System Box | L120*W120*H30mm | ||
Net weight of system box | 0.20kg | 0.20kg | 0.30kg |
Size of solar panel | L255*W140*H16mm | L225*W188*H20mm | L225*W188*H20mm |
Net weight of solar panel | 0.40kg | 0.60kg | 0.60kg |
Size of Battery | L40*W70*H20mm | L40*W70*H20mm | L80*W70*H20mm |
Net weight of battery | 0.10kg | 0.10kg | 0.20kg |
Optional Accessories: | |||
|
| |
|
9V 3~6W | 6V 2W LED bulb | 4 in 1 | AC-DC 9V |
Load & working hour:
| DC Load | Working Hour (ISS6-4.5Q) |
1* 2W LED bulb | 10~11 hours |
2* 2W LED bulb | 5~6 hours |
3* 2W LED bulbs | 3~4 hours |
Guarantee:
Main power box guarantee time: 1 year (Power box: 6~8 years; Lithium battery: 2-3years )
Accessories guarantee time: half year
Solar panel guarantee time: 5years (lifetime: around 25years, 90% output power at first 10 years, 80% output power at second 10 years)
Packaging & Delivery:
Packaging: Standard export package or according to customer's requirement.
20ft container: 2800sets(package size:330*230*150mm)
40ft container: 5600sets(package size:330*230*150mm)
Delivery Detail: Shipped in 7-25 days after payment (depend on quantity)
Should you're in need of quality home solar generator, welcome to buy the discount home solar generator with reasonable price from our factory. As a professional manufacturer and supplier, we are equipped with advanced technology to better serve you.
